OVERVIEW : RAM® Large Marine Electronics Mount

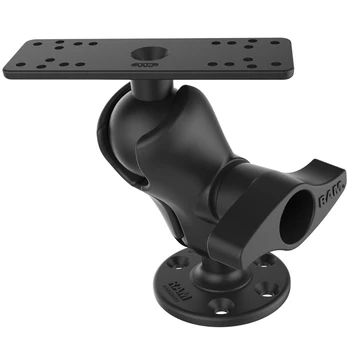

The RAM-D-111U consists of a medium double socket arm, 3.68″ diameter round base, and 11″ x 3″ rectangle base. The round base includes a 2.25″ D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25″ D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
HARDWARE INCLUDED
(4) .312″ x .187″ Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 11.5″
SOCKET-TO-SOCKET LENGTH
6.88″
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3″ x 11″
Bottom Plate: 3.68″ Diameter
Bottom Plate: 3.68″ Diameter
BALL/SOCKET SIZE
D Size (2.25″)
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
4.47 lbs.
